cgv::render::renderer Class Reference

Abstract base class for all renderers that manage a render data and the rendering process. More...

#include <renderer.h>

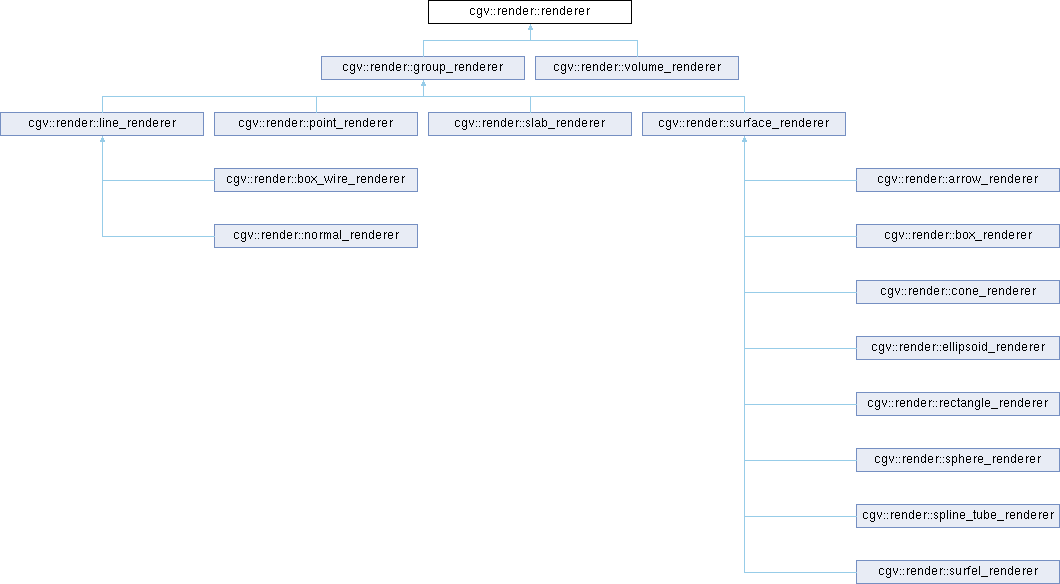

Inheritance diagram for cgv::render::renderer:

Public Member Functions
shader_compile_options &	ref_shader_options ()
	access to shader program compile options to update settings not handled by render style
shader_program &	ref_prog ()
	derived renderer classes have access to shader program
void	set_prog (shader_program &one_shot_prog)
	set external shader program up to next call to disable() or render()
void	draw_impl (context &ctx, PrimitiveType pt, size_t start, size_t count, bool use_strips=false, bool use_adjacency=false, uint32_t strip_restart_index=-1)
	default implementation of draw method with support for indexed rendering and different primitive types
void	draw_impl_instanced (context &ctx, PrimitiveType type, size_t start, size_t count, size_t instance_count, bool use_strips=false, bool use_adjacency=false, uint32_t strip_restart_index=-1)
	default implementation of instanced draw method with support for indexed rendering and different primitive types
	renderer ()
	construct and init attribute tracking flags
virtual	~renderer ()
	destructor deletes default renderer style
void	manage_singleton (context &ctx, const std::string &renderer_name, int &ref_count, int ref_count_change)
	used by derived classes to manage singletons
virtual void	enable_attribute_array_manager (const context &ctx, attribute_array_manager &aam)
	call this before setting attribute arrays to manage attribute array in given manager
virtual void	disable_attribute_array_manager (const context &ctx, attribute_array_manager &aam)
	call this after last render/draw call to ensure that no other users of renderer change attribute arrays of given manager
virtual void	set_attribute_array_manager (const context &ctx, attribute_array_manager *_aam_ptr=0)
	this function is deprecated, please use enable_attribute_array_manager() and disable_attribute_manager() instead
void	set_render_style (const render_style &rs)
	reference given render style
bool	build_program (context &ctx, shader_program &prog, const render_style &rs)
	build shader program for specific render style
virtual bool	init (context &ctx)
	call init() once before using renderer
template<typename T >
void	set_position (const context &ctx, const T &position)
	templated method to set the position attribute from a single position of type T
template<typename T >
void	set_position_array (const context &ctx, const std::vector< T > &positions)
	templated method to set the position attribute from a vector of positions of type T
template<typename T >
void	set_position_array (const context &ctx, const T *positions, size_t nr_elements, unsigned stride_in_bytes=0)
	templated method to set the position attribute from a vector of positions of type T
void	set_position_array (const context &ctx, type_descriptor element_type, const vertex_buffer &vbo, size_t offset_in_bytes, size_t nr_elements, unsigned stride_in_bytes)
	method to set the position attribute from a vertex buffer object
template<typename T >
void	set_position_array (const context &ctx, const vertex_buffer &vbo, size_t offset_in_bytes, size_t nr_elements, unsigned stride_in_bytes=0)
	template method to set the position attribute from a vertex buffer object, the element type must be given as explicit template parameter
void	remove_position_array (const context &ctx)
	remove the position attribute
template<typename T >
void	set_color (const context &ctx, const T &color)
	templated method to set the color attribute from a single color of type T
template<typename T >
void	set_color_array (const context &ctx, const std::vector< T > &colors)
	template method to set the color attribute from a vector of colors of type T
template<typename T >
void	set_color_array (const context &ctx, const T *colors, size_t nr_elements, unsigned stride_in_bytes=0)
	template method to set the color attribute from a vector of colors of type T
void	set_color_array (const context &ctx, type_descriptor element_type, const vertex_buffer &vbo, size_t offset_in_bytes, size_t nr_elements, unsigned stride_in_bytes=0)
	method to set the color attribute from a vertex buffer object, the element type must be given as explicit template parameter
template<typename T >
void	set_color_array (const context &ctx, const vertex_buffer &vbo, size_t offset_in_bytes, size_t nr_elements, unsigned stride_in_bytes=0)
	template method to set the color attribute from a vertex buffer object, the element type must be given as explicit template parameter
void	remove_color_array (const context &ctx)
	remove the color attribute
template<typename T >
bool	set_indices (const context &ctx, const std::vector< T > &indices, bool keep_on_cpu=false)
	Set the indices for indexed rendering from a vector.
template<typename T >
bool	set_indices (const context &ctx, const T *indices, size_t nr_indices, bool keep_on_cpu=false)
	Set the indices for indexed rendering from an array given as a pointer.
template<typename T >
bool	set_indices (const context &ctx, const vertex_buffer &vbo, size_t count)
	Set the indices for indexed rendering from a GPU buffer.
bool	has_indices () const
	return whether indices have been defined
void	remove_indices (const context &ctx)
	remove previously set indices
const vertex_buffer *	get_vertex_buffer_ptr (const context &ctx, const attribute_array_manager &aam, const std::string &attr_name)
const vertex_buffer *	get_index_buffer_ptr (const attribute_array_manager &aam)
virtual bool	validate_attributes (const context &ctx) const
	call to validate, whether essential position attribute is defined
bool	validate_and_enable (context &ctx)
	validate attributes and if successful, enable renderer
virtual bool	enable (context &ctx)
	enables renderer
virtual void	draw (context &ctx, size_t start, size_t count, bool use_strips=false, bool use_adjacency=false, uint32_t strip_restart_index=-1)
	Draw a range of vertices or indexed elements.
virtual bool	disable (context &ctx)
	disable renderer
virtual bool	render (context &ctx, size_t start, size_t count, bool use_strips=false, bool use_adjacency=false, uint32_t strip_restart_index=-1)
	Convenience function that draws vertex or indexed element with this renderer.
virtual void	clear (const context &ctx)
	the clear function destructs the shader program

Protected Member Functions
bool	has_aam () const
	check for attribute array manager
bool	has_attribute (const context &ctx, const std::string &name)
	check for attribute
virtual render_style *	create_render_style () const =0
	implement this method to create a default render style
const render_style *	get_style_ptr () const
	access to render style
bool	attributes_persist () const
	return whether attributes persist after a call to disable
virtual void	update_shader_program_options (shader_compile_options &options) const
	overload to update the shader program compile options based on the current render style; only called if internal shader program is used
virtual bool	build_shader_program (context &ctx, shader_program &prog, const shader_compile_options &options) const
	overload to change default behaviour and build a custom shader program based on the passed options
virtual std::string	get_default_prog_name () const =0
	implement this method to return the name of the default shader program; return an empty string if the renderer handles program creation on its own
template<typename T >
const T &	get_style () const
	access to style
int	get_prog_attribute_location (const context &ctx, const std::string &name, bool error_check=true)
template<typename T >
bool	set_attribute_array (const context &ctx, const std::string &name, const T &array)
template<typename T >
bool	set_attribute_array (const context &ctx, const std::string &name, const T *array_ptr, size_t nr_elements, unsigned stride)
bool	set_attribute_array (const context &ctx, const std::string &name, type_descriptor element_type, const vertex_buffer &vbo, size_t offset_in_bytes, size_t nr_elements, unsigned stride_in_bytes)
template<typename C , typename T >
bool	set_composed_attribute_array (const context &ctx, const std::string &name, const C *array_ptr, size_t nr_elements, const T &elem)
	in case that several attributes are stored interleaved, call this function for the first and ref_composed_attribute_array() for all others
template<typename C , typename T >
bool	ref_composed_attribute_array (const context &ctx, const std::string &name, const std::string &name_ref, const C *array_ptr, size_t nr_elements, const T &elem)
	in case that several attributes are stored interleaved, call set_composed_attribute_array() for the first and this function for all others
bool	remove_attribute_array (const context &ctx, const std::string &name)

Protected Attributes
bool	has_colors = false
	track whether color attribute is defined
bool	has_positions = false
	track whether position attribute is defined

Detailed Description

Abstract base class for all renderers that manage a render data and the rendering process.

Render data is managed through buffer objects and fed into the rendering pipeline via an attribute array object. Render data management is done either with vertex array pointers or with an attribute array manager that manages buffers and one attribute array object. The rendering process is configured via a configuration values stored in a renderer specific render style, from which shader program defines, default attribute values and uniform values are derived. Besides standard compiler defines, a custom mechanism similar to macros called snippets is provided mostly for compute shader usage and configured in specialized renderers.

Rendering Process is decomposed into

• validate_attributes() ... check for essential attributes
• enable() ... re-compile shader program if render style configuration induced a change in program defines or snippets
• draw() ... emit a draw call to execute the rendering pipeline. Multiple calls to draw() are possible
• disable()... disable all program, buffers, and attribute array object and clear one shot programs and attributes

Rendering Process convenience functions are

• validate_and_enable() ... call validate_attributes() and in case of success enable()

• render() ... used for single draw calls and calls validate_and_enable(), draw(), disable()

External program can be used by setting it with the set_prog() function. For this a pointer to the external program is stored and used to resolve attribute indices and for successive draw calls until the first call to disable(), what is also called when the render() function is used. Thereafter the pointer is cleared and the own shader program set as active again. If an external program should be used multiple times, it needs to be set again with set_prog() after each call to disable() or render(). The user has to make sure that the external program exists till the next disable() or render() call using it.

Shader program attribute indices are determined from the own or external shader program via predefinded names, e.g. "position" and "color" for the attributes handled by the renderer class, during calls to set_position(), set_position_array(), set_color(), set_color_array(). Thus make sure if you use an external program to set the attributes after calling the set_prog() function.

Attributes persist similar to external program usage only until the next disable() or render() function call. In compatibility attribute array points are used to transfer attribute data to the gpu which can be done assynchronuously and in parallel to draw calls. For this to work, the user has to ensure that the CPU side attribute array data persists will the last draw() call using it. To store attribute data for multiple draw calls persistently in gpu buffers, an external attribute array manager can be used and enabled or disabled with the enable_attribute_manager() and disable_attribute_manager() functions. In core profile a default attribute array manager is constructed in case no external manager is provided. In this case, the attributes are still cleared after each calls to diable() or render() but the CPU side attribute data objects can be destructed before the draw calls. The context object ctx allows to check for core profile via the member ctx.core_profile.

Render styles of concrete renderers inherit the abstract class render_style that has a virtual destructor. The renderer class manages a default render style and supports setting an external render style with the set_render_style() function.

Definition at line 74 of file renderer.h.

Constructor & Destructor Documentation

renderer()

cgv::render::renderer::renderer

(

)

construct and init attribute tracking flags

Definition at line 9 of file renderer.cxx.

~renderer()

cgv::render::renderer::~renderer ( )

virtual

destructor deletes default renderer style

Definition at line 34 of file renderer.cxx.

Member Function Documentation

attributes_persist()

bool cgv::render::renderer::attributes_persist ( ) const

inlineprotected

return whether attributes persist after a call to disable

Definition at line 120 of file renderer.h.

Referenced by cgv::render::group_renderer::disable(), cgv::render::arrow_renderer::disable(), cgv::render::box_renderer::disable(), cgv::render::box_wire_renderer::disable(), cgv::render::cone_renderer::disable(), cgv::render::ellipsoid_renderer::disable(), cgv::render::line_renderer::disable(), cgv::render::point_renderer::disable(), cgv::render::rectangle_renderer::disable(), cgv::render::sphere_renderer::disable(), cgv::render::spline_tube_renderer::disable(), cgv::render::surface_renderer::disable(), and cgv::render::surfel_renderer::disable().

build_program()

bool cgv::render::renderer::build_program	(	context &	ctx,
		shader_program &	prog,
		const render_style &	rs
	)

build shader program for specific render style

Definition at line 145 of file renderer.cxx.

References build_shader_program(), and update_shader_program_options().

build_shader_program()

bool cgv::render::renderer::build_shader_program ( context &  ctx, shader_program &  prog, const shader_compile_options &  options  ) const

protectedvirtual

overload to change default behaviour and build a custom shader program based on the passed options

Reimplemented in cgv::render::surface_renderer.

Definition at line 40 of file renderer.cxx.

References cgv::render::shader_program::build_program(), and get_default_prog_name().

Referenced by build_program(), cgv::render::surface_renderer::build_shader_program(), enable(), and init().

clear()

void cgv::render::renderer::clear ( const context &  ctx )

virtual

the clear function destructs the shader program

Reimplemented in cgv::render::cone_renderer, and cgv::render::volume_renderer.

Definition at line 348 of file renderer.cxx.

Referenced by cgv::app::transformation_gizmo::clear(), cgv::app::navigator::clear(), cgv::render::cone_renderer::clear(), cgv::render::volume_renderer::clear(), and manage_singleton().

create_render_style()

virtual render_style * cgv::render::renderer::create_render_style ( ) const

protectedpure virtual

implement this method to create a default render style

Implemented in cgv::render::arrow_renderer, cgv::render::box_renderer, cgv::render::box_wire_renderer, cgv::render::cone_renderer, cgv::render::ellipsoid_renderer, cgv::render::line_renderer, cgv::render::normal_renderer, cgv::render::point_renderer, cgv::render::rectangle_renderer, cgv::render::sphere_renderer, cgv::render::spline_tube_renderer, cgv::render::surfel_renderer, and cgv::render::volume_renderer.

Referenced by get_style_ptr(), and init().

disable()

bool cgv::render::renderer::disable ( context &  ctx )

virtual

disable renderer

Reimplemented in cgv::render::group_renderer, cgv::render::arrow_renderer, cgv::render::box_renderer, cgv::render::box_wire_renderer, cgv::render::cone_renderer, cgv::render::ellipsoid_renderer, cgv::render::line_renderer, cgv::render::point_renderer, cgv::render::rectangle_renderer, cgv::render::sphere_renderer, cgv::render::spline_tube_renderer, cgv::render::surface_renderer, cgv::render::surfel_renderer, and cgv::render::volume_renderer.

Definition at line 229 of file renderer.cxx.

References cgv::render::shader_compile_options::clear(), and cgv::render::context_config::core_profile.

Referenced by cgv::render::group_renderer::disable(), and cgv::render::volume_renderer::disable().

disable_attribute_array_manager()

void cgv::render::renderer::disable_attribute_array_manager ( const context &  ctx, attribute_array_manager &  aam  )

virtual

call this after last render/draw call to ensure that no other users of renderer change attribute arrays of given manager

Reimplemented in cgv::render::group_renderer, cgv::render::arrow_renderer, cgv::render::box_renderer, cgv::render::box_wire_renderer, cgv::render::cone_renderer, cgv::render::ellipsoid_renderer, cgv::render::line_renderer, cgv::render::point_renderer, cgv::render::rectangle_renderer, cgv::render::sphere_renderer, cgv::render::spline_tube_renderer, cgv::render::surface_renderer, and cgv::render::surfel_renderer.

Definition at line 62 of file renderer.cxx.

References cgv::render::context_config::core_profile, has_colors, and has_positions.

Referenced by cgv::render::volume_renderer::clear(), cgv::render::group_renderer::disable_attribute_array_manager(), and set_attribute_array_manager().

draw()

void cgv::render::renderer::draw ( context &  ctx, size_t  start, size_t  count, bool  use_strips = false, bool  use_adjacency = false, uint32_t  strip_restart_index = -1  )

virtual

Draw a range of vertices or indexed elements.

Call this function only successful enabeling via validate_and_enable() or enable(). Capsulates glDrawArrays and glDrawElements calls. Overloaded implementations of specific renderers choose the to be used gl primitive type and whether to use an instanced draw call.

See also

render()

Parameters

count	number of to be drawn vertices/elements
start	index of first to be drawn vertex/element
use_strips	whether to generate primitives in strips (only for line or triangle primitives)
use_adjacency	whether to specify adjacency information (only for line or triangle primitives)
strip_restart_index	extraorindary index used to mark end of strips (only for strip based drawing) Strip based drawing can be combined with the use of adjacency information. Default implementation uses triangle primitives.

Reimplemented in cgv::render::arrow_renderer, cgv::render::box_renderer, cgv::render::box_wire_renderer, cgv::render::cone_renderer, cgv::render::ellipsoid_renderer, cgv::render::line_renderer, cgv::render::normal_renderer, cgv::render::point_renderer, cgv::render::rectangle_renderer, cgv::render::sphere_renderer, cgv::render::spline_tube_renderer, cgv::render::surfel_renderer, and cgv::render::volume_renderer.

Definition at line 336 of file renderer.cxx.

Referenced by cgv::render::render_data_base< RendererType, RenderStyleType, ColorType >::draw().

draw_impl()

void cgv::render::renderer::draw_impl	(	context &	ctx,
		PrimitiveType	pt,
		size_t	start,
		size_t	count,
		bool	use_strips = false,
		bool	use_adjacency = false,
		uint32_t	strip_restart_index = -1
	)

default implementation of draw method with support for indexed rendering and different primitive types

Definition at line 252 of file renderer.cxx.

References cgv::type::info::get_type_size(), and cgv::render::VBT_INDICES.

Referenced by cgv::render::arrow_renderer::draw(), cgv::render::box_renderer::draw(), cgv::render::box_wire_renderer::draw(), cgv::render::cone_renderer::draw(), cgv::render::ellipsoid_renderer::draw(), cgv::render::line_renderer::draw(), cgv::render::normal_renderer::draw(), cgv::render::point_renderer::draw(), cgv::render::rectangle_renderer::draw(), cgv::render::sphere_renderer::draw(), cgv::render::spline_tube_renderer::draw(), and cgv::render::surfel_renderer::draw().

draw_impl_instanced()

void cgv::render::renderer::draw_impl_instanced	(	context &	ctx,
		PrimitiveType	type,
		size_t	start,
		size_t	count,
		size_t	instance_count,
		bool	use_strips = false,
		bool	use_adjacency = false,
		uint32_t	strip_restart_index = -1
	)

default implementation of instanced draw method with support for indexed rendering and different primitive types

Definition at line 294 of file renderer.cxx.

References cgv::type::info::get_type_size(), and cgv::render::VBT_INDICES.

enable()

bool cgv::render::renderer::enable ( context &  ctx )

virtual

enables renderer

if internal program is used, first update defines with update_defines() and rebuild program if it changed due updating or external modification via ref_defines()

Reimplemented in cgv::render::group_renderer, cgv::render::arrow_renderer, cgv::render::box_renderer, cgv::render::box_wire_renderer, cgv::render::cone_renderer, cgv::render::ellipsoid_renderer, cgv::render::line_renderer, cgv::render::normal_renderer, cgv::render::point_renderer, cgv::render::rectangle_renderer, cgv::render::sphere_renderer, cgv::render::spline_tube_renderer, cgv::render::surface_renderer, cgv::render::surfel_renderer, and cgv::render::volume_renderer.

Definition at line 203 of file renderer.cxx.

References build_shader_program(), cgv::render::shader_program::destruct(), cgv::render::render_component::is_created(), and update_shader_program_options().

Referenced by cgv::render::group_renderer::enable(), cgv::render::volume_renderer::enable(), and validate_and_enable().

enable_attribute_array_manager()

void cgv::render::renderer::enable_attribute_array_manager ( const context &  ctx, attribute_array_manager &  aam  )

virtual

call this before setting attribute arrays to manage attribute array in given manager

Reimplemented in cgv::render::group_renderer, cgv::render::arrow_renderer, cgv::render::box_renderer, cgv::render::box_wire_renderer, cgv::render::cone_renderer, cgv::render::ellipsoid_renderer, cgv::render::line_renderer, cgv::render::point_renderer, cgv::render::rectangle_renderer, cgv::render::sphere_renderer, cgv::render::spline_tube_renderer, cgv::render::surface_renderer, and cgv::render::surfel_renderer.

Definition at line 53 of file renderer.cxx.

References has_attribute(), has_colors, and has_positions.

Referenced by cgv::render::group_renderer::enable_attribute_array_manager(), cgv::render::volume_renderer::init(), and set_attribute_array_manager().

get_default_prog_name()

virtual std::string cgv::render::renderer::get_default_prog_name ( ) const

protectedpure virtual

implement this method to return the name of the default shader program; return an empty string if the renderer handles program creation on its own

Implemented in cgv::render::arrow_renderer, cgv::render::box_renderer, cgv::render::box_wire_renderer, cgv::render::cone_renderer, cgv::render::ellipsoid_renderer, cgv::render::line_renderer, cgv::render::normal_renderer, cgv::render::point_renderer, cgv::render::rectangle_renderer, cgv::render::sphere_renderer, cgv::render::spline_tube_renderer, cgv::render::surfel_renderer, and cgv::render::volume_renderer.

Referenced by build_shader_program().

get_index_buffer_ptr()

const vertex_buffer * cgv::render::renderer::get_index_buffer_ptr ( const attribute_array_manager &  aam )

inline

Returns a pointer to the vertex buffer of type element buffer holding the indices for indexed rendering as managed by the attribute array manager. Returns nullptr if the buffer or attribute array manager does not exist. Take caution when manipulating the buffer.

Definition at line 337 of file renderer.h.

References cgv::render::attribute_array_manager::get_buffer_ptr().

get_prog_attribute_location()

int cgv::render::renderer::get_prog_attribute_location ( const context &  ctx, const std::string &  name, bool  error_check = true  )

inlineprotected

Definition at line 144 of file renderer.h.

get_style()

template<typename T >

const T & cgv::render::renderer::get_style ( ) const

inlineprotected

access to style

Definition at line 138 of file renderer.h.

get_style_ptr()

const render_style * cgv::render::renderer::get_style_ptr ( ) const

protected

access to render style

Definition at line 157 of file renderer.cxx.

References create_render_style().

Referenced by cgv::render::group_renderer::validate_attributes().

get_vertex_buffer_ptr()

const vertex_buffer * cgv::render::renderer::get_vertex_buffer_ptr ( const context &  ctx, const attribute_array_manager &  aam, const std::string &  attr_name  )

inline

Returns a pointer to the vertex buffer of the given attribute name as managed by the attribute array manager. Returns nullptr if the buffer or attribute array manager does not exist. Take caution when manipulating the buffer.

Definition at line 331 of file renderer.h.

References cgv::render::attribute_array_manager::get_buffer_ptr().

has_aam()

bool cgv::render::renderer::has_aam ( ) const

inlineprotected

check for attribute array manager

Definition at line 112 of file renderer.h.

has_attribute()

bool cgv::render::renderer::has_attribute ( const context &  ctx, const std::string &  name  )

protected

check for attribute

Definition at line 48 of file renderer.cxx.

References cgv::render::attribute_array_manager::has_attribute().

Referenced by cgv::render::group_renderer::enable_attribute_array_manager(), enable_attribute_array_manager(), cgv::render::arrow_renderer::enable_attribute_array_manager(), cgv::render::box_renderer::enable_attribute_array_manager(), cgv::render::box_wire_renderer::enable_attribute_array_manager(), cgv::render::cone_renderer::enable_attribute_array_manager(), cgv::render::ellipsoid_renderer::enable_attribute_array_manager(), cgv::render::line_renderer::enable_attribute_array_manager(), cgv::render::point_renderer::enable_attribute_array_manager(), cgv::render::rectangle_renderer::enable_attribute_array_manager(), cgv::render::sphere_renderer::enable_attribute_array_manager(), cgv::render::spline_tube_renderer::enable_attribute_array_manager(), cgv::render::surface_renderer::enable_attribute_array_manager(), and cgv::render::surfel_renderer::enable_attribute_array_manager().

has_indices()

bool cgv::render::renderer::has_indices ( ) const

inline

return whether indices have been defined

Definition at line 321 of file renderer.h.

References cgv::render::attribute_array_manager::has_index_buffer().

Referenced by remove_indices().

init()

bool cgv::render::renderer::init ( context &  ctx )

virtual

call init() once before using renderer

creates default render style and builds shader program based on defines that can be configured with ref_defines() before calling init(). Reconfiguring defines after init() causes rebuild of shader program in enable() function.

Reimplemented in cgv::render::line_renderer, cgv::render::rectangle_renderer, and cgv::render::volume_renderer.

Definition at line 172 of file renderer.cxx.

References build_shader_program(), cgv::render::context_config::core_profile, create_render_style(), and update_shader_program_options().

Referenced by cgv::app::transformation_gizmo::init(), cgv::app::navigator::init(), cgv::render::line_renderer::init(), cgv::render::rectangle_renderer::init(), cgv::render::volume_renderer::init(), and manage_singleton().

manage_singleton()

void cgv::render::renderer::manage_singleton	(	context &	ctx,
		const std::string &	renderer_name,
		int &	ref_count,
		int	ref_count_change
	)

used by derived classes to manage singletons

Definition at line 10 of file renderer.cxx.

References clear(), cgv::render::context::error(), and init().

Referenced by cgv::render::ref_arrow_renderer(), cgv::render::ref_box_renderer(), cgv::render::ref_box_wire_renderer(), cgv::render::ref_cone_renderer(), cgv::render::ref_ellipsoid_renderer(), cgv::render::ref_normal_renderer(), cgv::render::ref_point_renderer(), cgv::render::ref_rectangle_renderer(), cgv::render::ref_sphere_renderer(), cgv::render::ref_spline_tube_renderer(), cgv::render::ref_surfel_renderer(), and cgv::render::ref_volume_renderer().

ref_composed_attribute_array()

template<typename C , typename T >

bool cgv::render::renderer::ref_composed_attribute_array ( const context &  ctx, const std::string &  name, const std::string &  name_ref, const C *  array_ptr, size_t  nr_elements, const T &  elem  )

inlineprotected

in case that several attributes are stored interleaved, call set_composed_attribute_array() for the first and this function for all others

Definition at line 188 of file renderer.h.

ref_prog()

shader_program & cgv::render::renderer::ref_prog ( )

inline

derived renderer classes have access to shader program

Definition at line 129 of file renderer.h.

Referenced by cgv::render::group_renderer::enable(), cgv::render::arrow_renderer::enable(), cgv::render::box_renderer::enable(), cgv::render::box_wire_renderer::enable(), cgv::render::cone_renderer::enable(), cgv::render::ellipsoid_renderer::enable(), cgv::render::line_renderer::enable(), cgv::render::normal_renderer::enable(), cgv::render::point_renderer::enable(), cgv::render::rectangle_renderer::enable(), cgv::render::sphere_renderer::enable(), cgv::render::spline_tube_renderer::enable(), cgv::render::surface_renderer::enable(), cgv::render::surfel_renderer::enable(), cgv::render::volume_renderer::enable(), cgv::render::line_renderer::init(), and cgv::render::rectangle_renderer::set_textured_rectangle().

ref_shader_options()

shader_compile_options & cgv::render::renderer::ref_shader_options ( )

inline

access to shader program compile options to update settings not handled by render style

Definition at line 127 of file renderer.h.

remove_attribute_array()

bool cgv::render::renderer::remove_attribute_array ( const context &  ctx, const std::string &  name  )

protected

Definition at line 88 of file renderer.cxx.

remove_color_array()

void cgv::render::renderer::remove_color_array

(

const context &

ctx

)

remove the color attribute

Definition at line 114 of file renderer.cxx.

References has_colors.

remove_indices()

void cgv::render::renderer::remove_indices

(

const context &

ctx

)

remove previously set indices

Definition at line 118 of file renderer.cxx.

References has_indices().

remove_position_array()

void cgv::render::renderer::remove_position_array

(

const context &

ctx

)

remove the position attribute

Definition at line 105 of file renderer.cxx.

References has_positions.

render()

bool cgv::render::renderer::render ( context &  ctx, size_t  start, size_t  count, bool  use_strips = false, bool  use_adjacency = false, uint32_t  strip_restart_index = -1  )

virtual

Convenience function that draws vertex or indexed element with this renderer.

This function effectively calls validate_and_enable(), draw() and disable(), passes its parameters to draw and returns the result of validate_and_enable(). draw() and disable() are only executed if validate_and_enable() succeeds. For performance reasons this function should not be used for several successive draw calls due to the unnecessary enabling and disabling between render calls. Typically, this function does not need to be overloaded by specific renderers.

See also

draw()

validate_and_enable()

Definition at line 341 of file renderer.cxx.

Referenced by vr_test::draw(), cgv::render::gl::gl_implicit_surface_drawable_base::draw_implicit_surface(), and vr_view_interactor::draw_vr_kits().

set_attribute_array() [1/3]

template<typename T >

bool cgv::render::renderer::set_attribute_array ( const context &  ctx, const std::string &  name, const T &  array  )

inlineprotected

Definition at line 154 of file renderer.h.

set_attribute_array() [2/3]

template<typename T >

bool cgv::render::renderer::set_attribute_array ( const context &  ctx, const std::string &  name, const T *  array_ptr, size_t  nr_elements, unsigned  stride  )

inlineprotected

Definition at line 164 of file renderer.h.

set_attribute_array() [3/3]

bool cgv::render::renderer::set_attribute_array ( const context &  ctx, const std::string &  name, type_descriptor  element_type, const vertex_buffer &  vbo, size_t  offset_in_bytes, size_t  nr_elements, unsigned  stride_in_bytes  )

protected

Definition at line 78 of file renderer.cxx.

set_attribute_array_manager()

void cgv::render::renderer::set_attribute_array_manager ( const context &  ctx, attribute_array_manager *  _aam_ptr = 0  )

virtual

this function is deprecated, please use enable_attribute_array_manager() and disable_attribute_manager() instead

Definition at line 71 of file renderer.cxx.

References disable_attribute_array_manager(), and enable_attribute_array_manager().

set_color()

template<typename T >

void cgv::render::renderer::set_color ( const context &  ctx, const T &  color  )

inline

templated method to set the color attribute from a single color of type T

Definition at line 244 of file renderer.h.

set_color_array() [1/4]

template<typename T >

void cgv::render::renderer::set_color_array ( const context &  ctx, const std::vector< T > &  colors  )

inline

template method to set the color attribute from a vector of colors of type T

Definition at line 247 of file renderer.h.

Referenced by vr_test::draw(), and vr_view_interactor::draw_vr_kits().

set_color_array() [2/4]

template<typename T >

void cgv::render::renderer::set_color_array ( const context &  ctx, const T *  colors, size_t  nr_elements, unsigned  stride_in_bytes = 0  )

inline

template method to set the color attribute from a vector of colors of type T

Definition at line 250 of file renderer.h.

set_color_array() [3/4]

template<typename T >

void cgv::render::renderer::set_color_array ( const context &  ctx, const vertex_buffer &  vbo, size_t  offset_in_bytes, size_t  nr_elements, unsigned  stride_in_bytes = 0  )

inline

template method to set the color attribute from a vertex buffer object, the element type must be given as explicit template parameter

Definition at line 255 of file renderer.h.

References set_color_array().

Referenced by set_color_array().

set_color_array() [4/4]

void cgv::render::renderer::set_color_array	(	const context &	ctx,
		type_descriptor	element_type,
		const vertex_buffer &	vbo,
		size_t	offset_in_bytes,
		size_t	nr_elements,
		unsigned	stride_in_bytes = 0
	)

method to set the color attribute from a vertex buffer object, the element type must be given as explicit template parameter

Definition at line 109 of file renderer.cxx.

References has_colors.

set_composed_attribute_array()

template<typename C , typename T >

bool cgv::render::renderer::set_composed_attribute_array ( const context &  ctx, const std::string &  name, const C *  array_ptr, size_t  nr_elements, const T &  elem  )

inlineprotected

in case that several attributes are stored interleaved, call this function for the first and ref_composed_attribute_array() for all others

Definition at line 177 of file renderer.h.

set_indices() [1/3]

template<typename T >

bool cgv::render::renderer::set_indices ( const context &  ctx, const std::vector< T > &  indices, bool  keep_on_cpu = false  )

inline

Set the indices for indexed rendering from a vector.

If an attribute array manager is enabled and keep_on_cpu is false (default), create GPU index buffer and transfer indices into it.

Template Parameters

T	index type must be uint8_t, uint16_t, or uint32_t

Parameters

ctx	opengl context in which indexed rendering takes place
indices	vector of indices
keep_on_cpu	flag whether indices should be kept in CPU memory

Returns

this can only fail if indices cannot be copied to GPU buffer

Definition at line 269 of file renderer.h.

set_indices() [2/3]

template<typename T >

bool cgv::render::renderer::set_indices ( const context &  ctx, const T *  indices, size_t  nr_indices, bool  keep_on_cpu = false  )

inline

Set the indices for indexed rendering from an array given as a pointer.

If an attribute array manager is enabled and keep_on_cpu is false (default), create GPU index buffer and transfer indices into it.

Template Parameters

T	index type must be uint8_t, uint16_t, or uint32_t

Parameters

ctx	opengl context in which indexed rendering takes place
indices	pointer to array containing the indices
nr_indices	number of indices in the array
keep_on_cpu	flag whether indices should be kept in CPU memory

Returns

this can only fail if indices cannot be copied to GPU buffer

Definition at line 290 of file renderer.h.

set_indices() [3/3]

template<typename T >

bool cgv::render::renderer::set_indices ( const context &  ctx, const vertex_buffer &  vbo, size_t  count  )

inline

Set the indices for indexed rendering from a GPU buffer.

If an attribute array manager is enabled its index buffer is removed through this call.

Template Parameters

T	index type must be uint8_t, uint16_t, or uint32_t

Parameters

ctx	opengl context in which indexed rendering takes place
vbo	GPU buffer
count	number of indices in the GPU buffer

Returns

in current implementation this succeeds always

Definition at line 311 of file renderer.h.

set_position()

template<typename T >

void cgv::render::renderer::set_position ( const context &  ctx, const T &  position  )

inline

templated method to set the position attribute from a single position of type T

Definition at line 228 of file renderer.h.

set_position_array() [1/4]

template<typename T >

void cgv::render::renderer::set_position_array ( const context &  ctx, const std::vector< T > &  positions  )

inline

templated method to set the position attribute from a vector of positions of type T

Definition at line 231 of file renderer.h.

Referenced by cgv::render::gl::gl_implicit_surface_drawable_base::draw_implicit_surface(), and cgv::render::volume_renderer::init().

set_position_array() [2/4]

template<typename T >

void cgv::render::renderer::set_position_array ( const context &  ctx, const T *  positions, size_t  nr_elements, unsigned  stride_in_bytes = 0  )

inline

templated method to set the position attribute from a vector of positions of type T

Definition at line 234 of file renderer.h.

set_position_array() [3/4]

template<typename T >

void cgv::render::renderer::set_position_array ( const context &  ctx, const vertex_buffer &  vbo, size_t  offset_in_bytes, size_t  nr_elements, unsigned  stride_in_bytes = 0  )

inline

template method to set the position attribute from a vertex buffer object, the element type must be given as explicit template parameter

Definition at line 239 of file renderer.h.

References set_position_array().

Referenced by set_position_array().

set_position_array() [4/4]

void cgv::render::renderer::set_position_array	(	const context &	ctx,
		type_descriptor	element_type,
		const vertex_buffer &	vbo,
		size_t	offset_in_bytes,
		size_t	nr_elements,
		unsigned	stride_in_bytes
	)

method to set the position attribute from a vertex buffer object

Definition at line 100 of file renderer.cxx.

References has_positions.

set_prog()

void cgv::render::renderer::set_prog

(

shader_program &

one_shot_prog

)

set external shader program up to next call to disable() or render()

set external shader program for successive draw call only

Definition at line 167 of file renderer.cxx.

set_render_style()

void cgv::render::renderer::set_render_style

(

const render_style &

rs

)

reference given render style

Definition at line 139 of file renderer.cxx.

Referenced by vr_test::draw(), cgv::render::gl::gl_implicit_surface_drawable_base::draw_implicit_surface(), and vr_view_interactor::draw_vr_kits().

update_shader_program_options()

virtual void cgv::render::renderer::update_shader_program_options ( shader_compile_options &  options ) const

inlineprotectedvirtual

overload to update the shader program compile options based on the current render style; only called if internal shader program is used

Reimplemented in cgv::render::box_renderer, cgv::render::cone_renderer, cgv::render::group_renderer, cgv::render::surface_renderer, and cgv::render::volume_renderer.

Definition at line 122 of file renderer.h.

Referenced by build_program(), enable(), init(), and cgv::render::group_renderer::update_shader_program_options().

validate_and_enable()

bool cgv::render::renderer::validate_and_enable

(

context &

ctx

)

validate attributes and if successful, enable renderer

Definition at line 196 of file renderer.cxx.

References enable(), and validate_attributes().

Referenced by vr_test::draw().

validate_attributes()

bool cgv::render::renderer::validate_attributes ( const context &  ctx ) const

virtual

call to validate, whether essential position attribute is defined

Reimplemented in cgv::render::group_renderer, cgv::render::arrow_renderer, cgv::render::cone_renderer, cgv::render::ellipsoid_renderer, cgv::render::normal_renderer, cgv::render::point_renderer, cgv::render::rectangle_renderer, cgv::render::sphere_renderer, cgv::render::spline_tube_renderer, cgv::render::surfel_renderer, and cgv::render::volume_renderer.

Definition at line 129 of file renderer.cxx.

References cgv::render::context::error(), and has_positions.

Referenced by validate_and_enable(), cgv::render::group_renderer::validate_attributes(), and cgv::render::volume_renderer::validate_attributes().

Member Data Documentation

has_colors

bool cgv::render::renderer::has_colors = false

mutableprotected

track whether color attribute is defined

Definition at line 140 of file renderer.h.

Referenced by disable_attribute_array_manager(), cgv::render::line_renderer::enable(), cgv::render::point_renderer::enable(), cgv::render::surface_renderer::enable(), cgv::render::surfel_renderer::enable(), enable_attribute_array_manager(), remove_color_array(), set_color_array(), cgv::render::point_renderer::validate_attributes(), and cgv::render::surfel_renderer::validate_attributes().

has_positions

bool cgv::render::renderer::has_positions = false

mutableprotected

track whether position attribute is defined

Definition at line 142 of file renderer.h.

Referenced by disable_attribute_array_manager(), enable_attribute_array_manager(), remove_position_array(), set_position_array(), cgv::render::rectangle_renderer::set_textured_rectangle(), and validate_attributes().

---

The documentation for this class was generated from the following files:

• libs/cgv_gl/renderer.h
• libs/cgv_gl/renderer.cxx
