cgv::render::box_wire_render_data< ColorType > Class Template Reference

Render data for box geometry with support for the box_wire_renderer. More...

#include <box_wire_render_data.h>

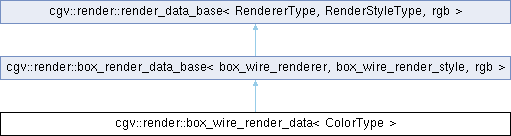

Inheritance diagram for cgv::render::box_wire_render_data< ColorType >:

Additional Inherited Members
Public Member Functions inherited from cgv::render::box_render_data_base< RendererType, RenderStyleType, ColorType >
void	clear ()
void	add_extent (const vec3 &extent)
void	add_translation (const vec3 &translation)
void	add_rotation (const quat &rotation)
void	add (const vec3 &position, const vec3 &extent)
void	add (const vec3 &position, const vec3 &extent, const quat &rotation)
void	add (const vec3 &position, const vec3 &extent, const ColorType &color)
void	add (const vec3 &translation, const quat &rotation)
void	fill_extents (const vec3 &extent)
void	fill_translations (const vec3 &translation)
void	fill_rotations (const quat &rotation)
void	add (const vec3 &position, const ColorType &color)
Public Member Functions inherited from cgv::render::render_data_base< RendererType, RenderStyleType, ColorType >
size_t	size ()
	Return the number of stored positions.
bool	empty () const
	Return whether this render data is empty.
void	clear ()
	Clear the stored data and set state out of date.
void	set_out_of_date ()
	Notify the render data about state changes.
size_t	render_count ()
	Return the number of vertices that will be rendered.
const attribute_array_manager &	ref_attribute_array_manager () const
	Constant access to the private attribute_array_manager.
bool	init (context &ctx)
	Initialize the attribute array manager and increase the reference count of the used renderer singleton.
void	destruct (context &ctx)
	Destruct the attribute array manager and decrease the reference count of the used renderer singleton.
void	early_transfer (context &ctx, RendererType &r)
	Perform a transfer of the stored data to the attribute_array right now.
bool	enable (context &ctx, RendererType &r, const RenderStyleType &s)
	Enable the render data for rendering.
bool	disable (context &ctx, RendererType &r)
	Disable the renderer and attribute_array.
void	draw (context &ctx, renderer &r, unsigned offset=0, int count=-1)
	Draw the stored geometry using the given renderer.
void	render (context &ctx, unsigned offset=0, int count=-1)
	Render the stored geometry.
void	render (context &ctx, const RenderStyleType &s, unsigned offset=0, int count=-1)
	Render the stored geometry using the given style.
void	render (context &ctx, RendererType &r, unsigned offset=0, int count=-1)
	Render the stored geometry using the given renderer.
void	render (context &ctx, RendererType &r, const RenderStyleType &s, unsigned offset=0, int count=-1)
	Render the stored geometry using the given renderer and style.
void	add_index (const uint32_t index)
void	add_position (const vec3 &position)
void	add_color (const ColorType &color)
void	add (const vec3 &position, const ColorType &color)
void	fill_colors (const ColorType &color)
Public Attributes inherited from cgv::render::box_render_data_base< RendererType, RenderStyleType, ColorType >
std::vector< vec3 >	extents
	array of extents
std::vector< vec3 >	translations
	array of translations
std::vector< quat >	rotations
	array of rotations
Public Attributes inherited from cgv::render::render_data_base< RendererType, RenderStyleType, ColorType >
RenderStyleType	style
	the default render style
std::vector< uint32_t >	indices
	array of indices used for optional indexed rendering
std::vector< vec3 >	positions
	array of positions
std::vector< ColorType >	colors
	array of colors
cgv::data::optional< ColorType >	const_color
	optional constant color used for all elements
Protected Member Functions inherited from cgv::render::box_render_data_base< RendererType, RenderStyleType, ColorType >
bool	transfer (context &ctx, RendererType &r) override
	See render_data_base::transfer.
Protected Member Functions inherited from cgv::render::render_data_base< RendererType, RenderStyleType, ColorType >
virtual void	set_const_attributes (context &ctx, RendererType &r)
	Set constant vertex attributes if present.
template<typename T >
void	fill (std::vector< T > &vector, const T &value)
	Template for filling a member array to the size of the render data.

Detailed Description

template<typename ColorType = rgb>
class cgv::render::box_wire_render_data< ColorType >

Render data for box geometry with support for the box_wire_renderer.

See render_data_base.

Template Parameters

ColorType

The type used to represent colors. Must be cgv::render::rgb or cgv::render::rgba.

Definition at line 12 of file box_wire_render_data.h.

---

The documentation for this class was generated from the following file:

• libs/cgv_gl/box_wire_render_data.h
