the data view gives access to a data array of one, two, three or four dimensions. More...

#include <data_view.h>

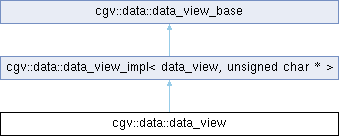

Inheritance diagram for cgv::data::data_view:

Public Member Functions
	data_view ()
	construct an empty data view without format and with empty data pointer*‍/

	~data_view ()
	destruct view and delete data pointer if it is owned by the view

	data_view (const data_format *_format)
	construct a data view from the given format.

	data_view (const data_format _format, void _data_ptr)
	construct a data view from the given format, viewing the complete data set.

	data_view (const data_format _format, unsigned char _data_ptr, bool manage_ptr)
	construct a data view from the given format, viewing the complete data set.

	data_view (const data_view &other)
	construct a data view as a copy of the given data view.

data_view &	operator= (const data_view &dv)
	the assignment operator takes over the data format and data pointers in case they are managed by the source data view

data_view	copy ()
	return a copy of this data_view and tha data via the copy constructor

void	set_ptr (unsigned char *ptr, bool manage_ptr)
	set a different data pointer that will be deleted with the delete [] operator of type (unsigned char*) on destruction if the manage_ptr flag is true

void	set_ptr (void *ptr)
	set a different data pointer that is not owned by the data view and will not be deleted on destruction.

template<typename T >
bool	set (int ci, const T &v)
	write access to the i-th component, return whether write was successful

void	reflect_horizontally ()
	reflect 2D data view at horizontal axis

Public Member Functions inherited from cgv::data::data_view_impl< data_view, unsigned char * >
	data_view_impl (const data_format _format=0, typename cgv::type::func::transfer_const< unsigned char , void * >::type _data_ptr=0)
	construct a data view from the given format, viewing the complete data set

bool	empty () const
	return whether the data pointer is a null pointer

cgv::type::func::transfer_const< unsigned char , S >::type	get_ptr () const
	return a data pointer to type S

cgv::type::func::transfer_const< unsigned char , S >::type	get_ptr (size_t i) const
	return a pointer to type S for i-th data entry

cgv::type::func::transfer_const< unsigned char , S >::type	get_ptr (size_t i, size_t j) const
	return a pointer to type S for (i,j)-th data entry

cgv::type::func::transfer_const< unsigned char , S >::type	get_ptr (size_t i, size_t j, size_t k) const
	return a pointer to type S for (i,j,k)-th data entry

cgv::type::func::transfer_const< unsigned char , S >::type	get_ptr (size_t i, size_t j, size_t k, size_t l) const
	return a pointer to type S for (i,j,k,l)-th data entry

S	get (unsigned ci) const
	constant access to the ci-th component

S	get (unsigned ci, size_t i) const
	constant access to the ci-th component of i-th data entry

S	get (unsigned ci, size_t i, size_t j) const
	constant access to the ci-th component of (i,j)-th data entry

S	get (unsigned ci, size_t i, size_t j, size_t k) const
	constant access to the ci-th component of (i,j,k)-th data entry

S	get (unsigned ci, size_t i, size_t j, size_t k, size_t l) const
	constant access to the ci-th component of (i,j,k,l)-th data entry

data_view	operator() (size_t i) const
	access to i-th data entry

data_view	operator() (size_t i, size_t j) const
	access to entry at (i,j)

data_view	operator() (size_t i, size_t j, size_t k) const
	access to entry at (i,j,k)

data_view	operator() (size_t i, size_t j, size_t k, size_t l) const
	access to entry at (i,j,k,l)

data_view	permute (const std::string &permutation) const
	permute the order of the indices, where the permutation argument "kji" implies that after the permutation the operator (i,j,k) returns the same as the operator (k,j,i) before the call to permute.

data_view	transpose () const
	transpose is equivalent to permute("ji")

cgv::type::func::transfer_const< unsigned char , S >::type	step_i (S *ptr, std::ptrdiff_t n=1) const
	return a pointer that points to the n-th next location if index i is increase by n

cgv::type::func::transfer_const< unsigned char , S >::type	step_j (S *ptr, std::ptrdiff_t n=1) const
	return a pointer that points to the n-th next location if index j is increase by n

cgv::type::func::transfer_const< unsigned char , S >::type	step_k (S *ptr, std::ptrdiff_t n=1) const
	return a pointer that points to the n-th next location if index k is increase by n

cgv::type::func::transfer_const< unsigned char , S >::type	step_l (S *ptr, std::ptrdiff_t n=1) const
	return a pointer that points to the n-th next location if index l is increase by n

Public Member Functions inherited from cgv::data::data_view_base
	data_view_base (const data_format *_format=0)
	construct the base of a data view from the given format, such that the step sizes and dimension are set to view the complete data set defined in the format.

virtual	~data_view_base ()
	delete format if it is owned

void	manage_format (bool enable=true)
	whether to manage the data format pointer

const data_format *	get_format () const
	return the component format

void	set_format (const data_format *_format)
	set a new data format

unsigned int	get_dim () const
	return the dimension of the data view, which is less or equal to the dimension of the data format

size_t	get_step_size (unsigned int dim) const
	return the step size in bytes in the i-th dimension

Static Public Member Functions
static bool	compose (data_view &composed_dv, const std::vector< data_view > &dvs)
	combine multiple n-dimensional data views with the same format into a (n+1)-dimensional data view by appending them

static bool	combine_components (data_view &dv, const std::vector< data_view >::iterator first, const std::vector< data_view >::iterator last)
	combine n data views each with one component channel into a single data view with n component channels, the format of the input data views needs to match

Protected Member Functions
	data_view (const data_format _format, unsigned char _data_ptr, unsigned int _dim, const size_t *_step_sizes)
	use base class for construction and don't manage data pointer

Protected Member Functions inherited from cgv::data::data_view_impl< data_view, unsigned char * >
	data_view_impl (const data_format _format, unsigned char _data_ptr, unsigned _dim, const size_t *_step_sizes)
	constructor used to construct sub views onto the data view

Protected Member Functions inherited from cgv::data::data_view_base
	data_view_base (const data_format _format, unsigned int _dim, const size_t _step_sizes)
	constructor used to construct sub views onto the data view

Protected Attributes
bool	owns_ptr
	a flag telling whether the data ptr is owned by the view

Protected Attributes inherited from cgv::data::data_view_impl< data_view, unsigned char * >
unsigned char *	data_ptr
	data pointer of type unsigned char or const unsigned char

Protected Attributes inherited from cgv::data::data_view_base
const data_format *	format

bool	owns_format
	whether to own the data format

unsigned int	dim

size_t	step_sizes [4]

Friends
class	data_view_impl< data_view, unsigned char * >
	declare base as friend

class	const_data_view

Detailed Description

the data view gives access to a data array of one, two, three or four dimensions.

Each data entry can consist of several components as defined in the referenced component format. It allows to permute the dimensions, construct views of lower dimension with the ()-operators defined in the data_view_impl and to access the data components with the get- and set-method of data_view_impl. It keeps a flag that tells whether the data pointer belongs to the data view and therefore needs to be deleted on destruction.

Definition at line 152 of file data_view.h.

Constructor & Destructor Documentation

◆ data_view() [1/5]

cgv::data::data_view::data_view ( )

construct an empty data view without format and with empty data pointer*‍/

Definition at line 184 of file data_view.cxx.

Referenced by combine_components(), and compose().

◆ ~data_view()

cgv::data::data_view::~data_view ( )

destruct view and delete data pointer if it is owned by the view

Definition at line 187 of file data_view.cxx.

References cgv::data::data_view_impl< data_view, unsigned char * >::data_ptr, and owns_ptr.

Referenced by cgv::render::gl::gl_context::read_frame_buffer().

◆ data_view() [2/5]

cgv::data::data_view::data_view ( const data_format * _format )

construct a data view from the given format.

Allocate a new data pointer with the new [] operator of type (unsigned char) and own the pointer. The data_view will view the complete data set as defined in the format.

Definition at line 194 of file data_view.cxx.

References cgv::data::data_view_impl< data_view, unsigned char * >::data_ptr, cgv::data::data_format::get_nr_bytes(), and owns_ptr.

◆ data_view() [3/5]

cgv::data::data_view::data_view	(	const data_format *	_format,
		void *	_data_ptr
	)

construct a data view from the given format, viewing the complete data set.

The passed pointer will not be owned by the view.

Definition at line 202 of file data_view.cxx.

◆ data_view() [4/5]

cgv::data::data_view::data_view	(	const data_format *	_format,
		unsigned char *	_data_ptr,
		bool	manage_ptr
	)

construct a data view from the given format, viewing the complete data set.

The passed pointer will be owned by the view if the manage_ptr flag is true. In this case the pointer is deleted on destruction with the delete [] operator of type (unsigned char*).

Definition at line 207 of file data_view.cxx.

◆ data_view() [5/5]

cgv::data::data_view::data_view ( const data_view & other )

inline

construct a data view as a copy of the given data view.

Copy the data and own the pointer. The data_view will view the complete data set as defined in the format.

Definition at line 184 of file data_view.h.

References cgv::data::data_format::get_nr_bytes(), and cgv::data::data_view_impl< D, P >::get_ptr().

Member Function Documentation

◆ combine_components()

bool cgv::data::data_view::combine_components	(	data_view &	dv,
		const std::vector< data_view >::iterator	first,
		const std::vector< data_view >::iterator	last
	)

static

combine n data views each with one component channel into a single data view with n component channels, the format of the input data views needs to match

Definition at line 339 of file data_view.cxx.

References cgv::data::CF_R, cgv::data::CF_RG, cgv::data::CF_RGB, cgv::data::CF_RGBA, data_view(), cgv::data::data_view_impl< D, P >::empty(), cgv::data::data_format::get_component_format(), cgv::data::component_format::get_component_type(), cgv::data::data_format::get_depth(), cgv::data::data_format::get_height(), cgv::data::component_format::get_nr_components(), cgv::data::data_format::get_nr_dimensions(), cgv::data::data_format::get_nr_time_steps(), cgv::data::data_view_impl< D, P >::get_ptr(), cgv::type::info::get_type_size(), and cgv::data::data_format::get_width().

◆ compose()

bool cgv::data::data_view::compose	(	data_view &	composed_dv,
		const std::vector< data_view > &	dvs
	)

static

combine multiple n-dimensional data views with the same format into a (n+1)-dimensional data view by appending them

Definition at line 290 of file data_view.cxx.

References data_view(), cgv::data::data_view_impl< D, P >::empty(), cgv::data::data_format::get_component_format(), cgv::data::data_view_base::get_format(), cgv::data::data_format::get_nr_bytes(), cgv::data::data_format::get_nr_dimensions(), cgv::data::data_view_impl< D, P >::get_ptr(), cgv::data::data_format::set_depth(), cgv::data::data_format::set_height(), and cgv::data::data_format::set_nr_time_steps().

◆ copy()

data_view cgv::data::data_view::copy ( )

inline

return a copy of this data_view and tha data via the copy constructor

Definition at line 193 of file data_view.h.

◆ operator=()

data_view & cgv::data::data_view::operator= ( const data_view & dv )

the assignment operator takes over the data format and data pointers in case they are managed by the source data view

Definition at line 212 of file data_view.cxx.

References cgv::data::data_view_impl< D, P >::data_ptr, cgv::data::data_view_impl< data_view, unsigned char * >::data_ptr, cgv::data::data_view_base::owns_format, and owns_ptr.

◆ reflect_horizontally()

void cgv::data::data_view::reflect_horizontally ( )

reflect 2D data view at horizontal axis

Definition at line 277 of file data_view.cxx.

References cgv::data::data_view_impl< data_view, unsigned char * >::data_ptr, cgv::data::data_view_base::get_format(), cgv::data::data_format::get_height(), and cgv::data::data_view_base::get_step_size().

Referenced by cgv::render::gl::gl_context::read_frame_buffer().

◆ set()

template<typename T >

bool cgv::data::data_view::set	(	int	ci,
		const T &	v
	)

inline

write access to the i-th component, return whether write was successful

Definition at line 205 of file data_view.h.

◆ set_ptr() [1/2]

void cgv::data::data_view::set_ptr	(	unsigned char *	ptr,
		bool	manage_ptr
	)

set a different data pointer that will be deleted with the delete [] operator of type (unsigned char*) on destruction if the manage_ptr flag is true

Definition at line 242 of file data_view.cxx.

References cgv::data::data_view_impl< data_view, unsigned char * >::data_ptr, and owns_ptr.

Referenced by cgv::media::image::image_reader::read_line().

◆ set_ptr() [2/2]

void cgv::data::data_view::set_ptr ( void * ptr )

set a different data pointer that is not owned by the data view and will not be deleted on destruction.

Definition at line 249 of file data_view.cxx.

References cgv::data::data_view_impl< data_view, unsigned char * >::data_ptr, and owns_ptr.

Friends And Related Symbol Documentation

◆ const_data_view

friend class const_data_view

friend

Definition at line 157 of file data_view.h.

◆ data_view_impl< data_view, unsigned char * >

friend class data_view_impl< data_view, unsigned char * >

friend

declare base as friend

Definition at line 138 of file data_view.h.

Member Data Documentation

◆ owns_ptr

bool cgv::data::data_view::owns_ptr

protected

a flag telling whether the data ptr is owned by the view

Definition at line 159 of file data_view.h.

Referenced by data_view(), operator=(), set_ptr(), set_ptr(), and ~data_view().

The documentation for this class was generated from the following files:

cgv/data/data_view.h
cgv/data/data_view.cxx

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ data_view() [1/5]

◆ ~data_view()

◆ data_view() [2/5]

◆ data_view() [3/5]

◆ data_view() [4/5]

◆ data_view() [5/5]

Member Function Documentation

◆ combine_components()

◆ compose()

◆ copy()

◆ operator=()

◆ reflect_horizontally()

◆ set()

◆ set_ptr() [1/2]

◆ set_ptr() [2/2]

Friends And Related Symbol Documentation

◆ const_data_view

◆ data_view_impl< data_view, unsigned char * >

Member Data Documentation

◆ owns_ptr
