cgv::render::surface_render_style Struct Reference

style of a point More...

#include <surface_renderer.h>

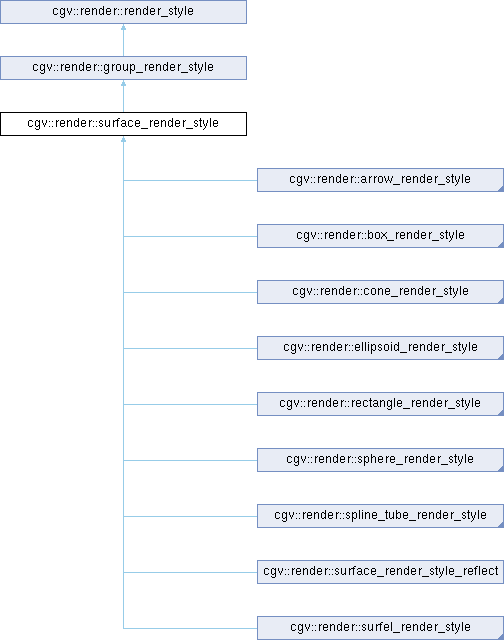

Inheritance diagram for cgv::render::surface_render_style:

Public Attributes
cgv::media::illum::surface_material::color_type	surface_color
	default value for color when map color to material is used
float	surface_opacity
	default value for the surface opacity when map color to material is used
CullingMode	culling_mode
	culling mode for point splats, set to CM_OFF in constructor
IlluminationMode	illumination_mode
	illumination mode defaults to IM_ONE_SIDED
ColorMapping	map_color_to_material
	material side[s] where color is to be mapped to the diffuse material component, defaults to MS_FRONT_AND_BACK
cgv::media::illum::textured_surface_material	material
	material of surface
Public Attributes inherited from cgv::render::group_render_style
bool	use_group_color
	whether to use group colors indexed through group index, defaults to false
bool	use_group_transformation
	whether to use group translation and rotation indexed through group index, defaults to false

Additional Inherited Members
Public Member Functions inherited from cgv::render::group_render_style
	group_render_style ()
	set default values

Detailed Description

style of a point

Definition at line 25 of file surface_renderer.h.

Constructor & Destructor Documentation

surface_render_style()

cgv::render::surface_render_style::surface_render_style

(

)

Definition at line 25 of file surface_renderer.cxx.

Member Data Documentation

culling_mode

CullingMode cgv::render::surface_render_style::culling_mode

culling mode for point splats, set to CM_OFF in constructor

Definition at line 32 of file surface_renderer.h.

Referenced by cgv::gui::surface_render_style_gui_creator::create(), cgv::render::surface_renderer::disable(), cgv::render::surfel_renderer::disable(), cgv::render::surface_renderer::enable(), cgv::render::gl::gl_implicit_surface_drawable_base::gl_implicit_surface_drawable_base(), and cgv::plot::plot3d::plot3d().

illumination_mode

IlluminationMode cgv::render::surface_render_style::illumination_mode

illumination mode defaults to IM_ONE_SIDED

Definition at line 34 of file surface_renderer.h.

Referenced by cgv::gui::surface_render_style_gui_creator::create(), cgv::render::surface_renderer::enable(), cgv::render::gl::gl_implicit_surface_drawable_base::gl_implicit_surface_drawable_base(), cgv::plot::plot3d::plot3d(), and cgv::plot::plot_base::plot_base().

map_color_to_material

ColorMapping cgv::render::surface_render_style::map_color_to_material

material side[s] where color is to be mapped to the diffuse material component, defaults to MS_FRONT_AND_BACK

Definition at line 36 of file surface_renderer.h.

Referenced by cgv::gui::surface_render_style_gui_creator::create(), cgv::render::surface_renderer::enable(), cgv::render::gl::gl_implicit_surface_drawable_base::gl_implicit_surface_drawable_base(), cgv::plot::plot3d::plot3d(), and cgv::plot::plot_base::plot_base().

material

cgv::media::illum::textured_surface_material cgv::render::surface_render_style::material

material of surface

Definition at line 38 of file surface_renderer.h.

Referenced by cgv::gui::surface_render_style_gui_creator::create(), and cgv::render::surface_renderer::enable().

surface_color

cgv::media::illum::surface_material::color_type cgv::render::surface_render_style::surface_color

default value for color when map color to material is used

Definition at line 28 of file surface_renderer.h.

Referenced by cgv::gui::surface_render_style_gui_creator::create(), cgv::render::surface_renderer::enable(), and cgv::render::gl::gl_implicit_surface_drawable_base::gl_implicit_surface_drawable_base().

surface_opacity

float cgv::render::surface_render_style::surface_opacity

default value for the surface opacity when map color to material is used

Definition at line 30 of file surface_renderer.h.

Referenced by cgv::gui::surface_render_style_gui_creator::create(), and cgv::render::surface_renderer::enable().

---

The documentation for this struct was generated from the following files:

• libs/cgv_gl/surface_renderer.h
• libs/cgv_gl/surface_renderer.cxx
