cgv::reflect::reflection_traits< T, KIND, has_str > Struct Template Reference

Default implementation of the reflection traits providing type specific interface. More...

#include <reflection_traits.h>

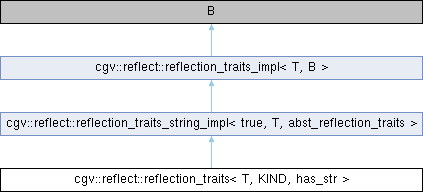

Inheritance diagram for cgv::reflect::reflection_traits< T, KIND, has_str >:

Public Member Functions
abst_reflection_traits *	clone ()
	clone function
Public Member Functions inherited from cgv::reflect::reflection_traits_impl< T, abst_reflection_traits >
unsigned	size () const
	return the size of the type
void *	new_instance () const
	construct an instance on the heap with the new operator
void	delete_instance (void *instance_ptr) const
	delete an instance with the delete operator
void *	new_instances (unsigned n) const
	construct n instances on the heap with the new operator
void	delete_instances (void *instance_array) const
	delete instances with the delete [] operator
cgv::type::info::TypeId	get_type_id () const
	return the type id
const char *	get_type_name () const
	return the type name
bool	is_enum_type () const
	return whether type is an enum type - this is independent of whether enum interface is implemented
Public Member Functions inherited from cgv::reflect::abst_reflection_traits
virtual	~abst_reflection_traits ()
	provide virtual destructor to allow generation of copies
virtual bool	has_external_implementation () const
	whether type can be converted to string, defaults to false
virtual bool	external_implementation (reflection_handler &rh, void *member_ptr)
	call the external implementation
virtual bool	has_string_conversions () const
	whether type can be converted to string, defaults to false
virtual bool	set_from_string (void *instance_ptr, const std::string &str_val)
	convert a given string value to the reflected type and store in the instance pointer
virtual void	get_to_string (const void *instance_ptr, std::string &str_val)
	convert given instance into a string value
virtual bool	has_enum_interface () const
	return whether the traits class implements the enum interface
virtual unsigned	get_nr_enum_items () const
	return the number of enum items
virtual std::string	get_enum_name (unsigned i) const
	return the name of the i-th enum item
virtual int	get_enum_value (unsigned i) const
	return the value of the i-th enum item

Static Public Attributes
static const ReflectionTraitsKind	kind = KIND
static const bool	has_external = false
	compile information about external implementation
static const bool	has_string = false
	compile information about string conversions
static const bool	has_enum = false
	compile information about enum interface

Detailed Description

template<typename T, ReflectionTraitsKind KIND = RTK_STRING, bool has_str = true>
struct cgv::reflect::reflection_traits< T, KIND, has_str >

Default implementation of the reflection traits providing type specific interface.

Definition at line 160 of file reflection_traits.h.

Member Function Documentation

clone()

template<typename T, ReflectionTraitsKind KIND = RTK_STRING, bool has_str = true>

abst_reflection_traits * cgv::reflect::reflection_traits< T, KIND, has_str >::clone ( )

inlinevirtual

clone function

Implements cgv::reflect::abst_reflection_traits.

Definition at line 164 of file reflection_traits.h.

Member Data Documentation

kind

template<typename T, ReflectionTraitsKind KIND = RTK_STRING, bool has_str = true>

const ReflectionTraitsKind cgv::reflect::reflection_traits< T, KIND, has_str >::kind = KIND

static

Definition at line 162 of file reflection_traits.h.

---

The documentation for this struct was generated from the following file:

• cgv/reflect/reflection_traits.h
