cgv::render::device_color_scale Class Reference

Base class defining an interface for using color scales on the graphics device, e.g. in a shader. More...

#include <device_color_scale.h>

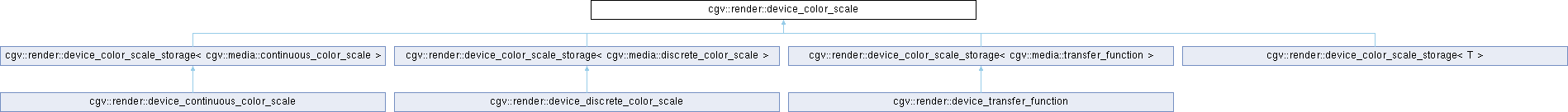

Inheritance diagram for cgv::render::device_color_scale:

Public Member Functions
device_color_scale_arguments	get_arguments () const
	Get the color scale arguments of the underlying color scale implementation.
cgv::data::time_point	get_modified_time () const
	Get the time point of the last modification of this object.
std::vector< cgv::rgba >	get_texture_data (size_t texture_resolution) const
	Get the texture data of the underlying color scales's color ramp or indexed colors.

Detailed Description

Base class defining an interface for using color scales on the graphics device, e.g. in a shader.

Definition at line 62 of file device_color_scale.h.

Member Function Documentation

get_arguments()

device_color_scale_arguments cgv::render::device_color_scale::get_arguments

(

)

const

Get the color scale arguments of the underlying color scale implementation.

Returns

The arguments struct.

Definition at line 6 of file device_color_scale.cxx.

References cgv::media::color_scale::get_domain(), cgv::media::color_scale::get_unknown_color(), and cgv::media::color_scale::is_clamped().

get_modified_time()

cgv::data::time_point cgv::render::device_color_scale::get_modified_time ( ) const

inline

Get the time point of the last modification of this object.

Returns

The time point.

Definition at line 72 of file device_color_scale.h.

get_texture_data()

std::vector< cgv::rgba > cgv::render::device_color_scale::get_texture_data

(

size_t

texture_resolution

)

const

Get the texture data of the underlying color scales's color ramp or indexed colors.

The size of the returned sequence may only exactly match requested_resolution if the underlying color scale is continuous. Discrete color scales may only return as much samples as governed by their indexed color count. If the underlying color scale does not provide opacity mapping, the opacity of the returned samples is expected to be 1.

Parameters

texture_resolution

The requested resolution.

Returns

The sequence of color RGBA samples.

Definition at line 19 of file device_color_scale.cxx.

---

The documentation for this class was generated from the following files:

• cgv/render/device_color_scale.h
• cgv/render/device_color_scale.cxx
