cgv::overlay::themed_canvas_overlay Class Reference

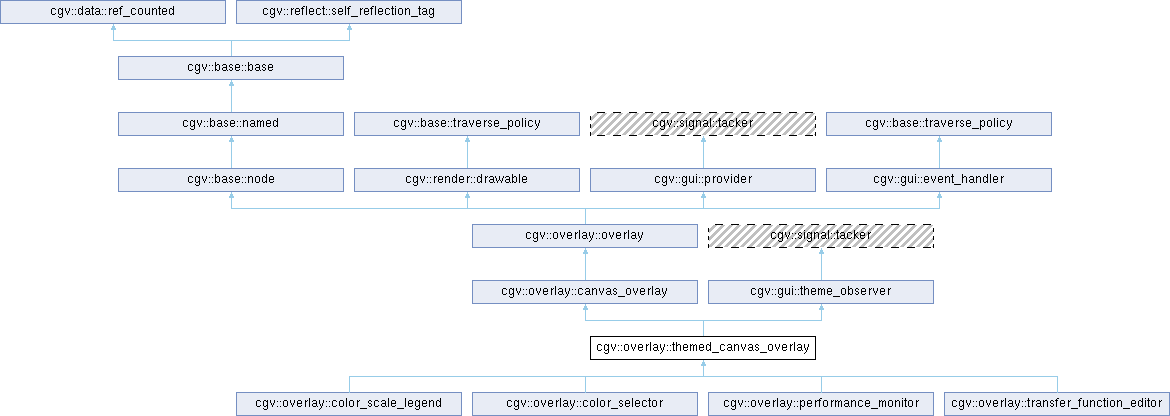

Inheritance diagram for cgv::overlay::themed_canvas_overlay:
Public Member Functions | |
| themed_canvas_overlay () | |
| creates an overlay in the bottom left corner with zero size using a canvas for 2d drawing | |
| bool | init (cgv::render::context &ctx) override |
| this method is called after creation or recreation of the context, return whether all necessary functionality is supported | |
| virtual void | handle_theme_change (const cgv::gui::theme_info &theme) override |
| override in your class to handle theme changes | |
| bool | get_background_visible () const |
| void | set_background_visible (bool flag) |
| Public Member Functions inherited from cgv::overlay::canvas_overlay | |
| canvas_overlay () | |
| creates an overlay in the bottom left corner with zero size using a canvas for 2d drawing | |
| void | clear (cgv::render::context &ctx) override |
| clear all objects living in the context like textures or display lists | |
| void | set_draw_in_finish_frame (bool enable=true) |
| set the drawing of the content to be in finish_frame (enable = true) or after_finish (enable = false) | |
| virtual void | on_set (void *member_ptr) override |
| default implementation of that calls handle_member_change and afterwards upates the member in the gui and post damage to the canvas overlay | |
| virtual void | handle_member_change (cgv::data::informed_ptr ptr) override |
| implement to handle member changes | |
| void | finish_frame (cgv::render::context &) override |
| draw the content of the canvas overlay either in finish_frame | |
| void | after_finish (cgv::render::context &) override |
| or in after_finish, what is the default | |
| virtual void | draw_content (cgv::render::context &ctx)=0 |
| draw_content is implemented by decendent classes | |
| void | post_damage (bool redraw=true) |
| ivec2 | get_local_mouse_pos (ivec2 mouse_pos) const override |
| return the mouse position local to the container of this overlay taking the canvas origin into account | |
| bool | is_hit (const ivec2 &mouse_pos) const override |
| Test if the mouse pointer is hovering over this overlay and returns true if this is the case. | |
| bool | is_hit_local (const ivec2 &local_mouse_pos) const |
| See is_hit. | |
| Public Member Functions inherited from cgv::overlay::overlay | |
| virtual bool | self_reflect (cgv::reflect::reflection_handler &_rh) |
| overload to reflect members of derived classes | |
| virtual void | stream_help (std::ostream &os) |
| overload to stream help information to the given output stream | |
| virtual bool | handle (cgv::gui::event &e) |
| handle incomming events; calls handle_key_events or handle_mouse_events depending on the event type; mouse events will only be handled if the mouse is over the overlay rectangle | |
| virtual bool | handle_key_event (cgv::gui::key_event &e) |
| overload this method to handle key events | |
| virtual bool | handle_mouse_event (cgv::gui::mouse_event &e, cgv::ivec2 local_mouse_pos) |
| overload this method to handle mouse events; local_mouse_pos is the mouse position in the local coordinate space of the overlay rectangle | |
| bool | blocks_events () const |
| return whether this overlay blocks events, i.e. does not pass them to the next event handler | |
| void | blocks_events (bool flag) |
| set whether the overlay blocks events | |
| ivec2 | get_viewport_size () const |
| return the current viewport size | |
| cgv::g2d::irect | get_rectangle () const |
| return the current rectangle area (in screen coordinates) of the overlay taking layout into account | |
| cgv::g2d::irect | get_local_rectangle () const |
| return the current rectangle area of the overlay in local space, i.e. with position set to zero | |
| Alignment | get_horizontal_alignment () const |
| get the horizontal alignment | |
| Alignment | get_vertical_alignment () const |
| get the vertical alignment | |
| vec2 | get_percentual_offset () const |
| get the percentual alignment offset (only valid if get_horizontal_alignment() or get_vertical_alignment() returns AlignmentOption::kPercentual) | |
| void | set_alignment (Alignment horizontal, Alignment vertical, vec2 percentual_offset=vec2(-1.0f)) |
| set the alignment | |
| StretchMode | get_stretch_mode () const |
| get the stretch | |
| vec2 | get_percentual_size () const |
| get the percentual stretch (only valid if get_stretch_mode() returns StretchMode::kPercentual) | |
| void | set_stretch_mode (StretchMode stretch, vec2 percentual_size=vec2(-1.0f)) |
| set the stretch mode | |
| ivec2 | get_margin () const |
| return the margin as set in the layout parameters | |
| void | set_margin (const ivec2 &margin) |
| set the overlay margin | |
| void | set_size (const ivec2 &size) |
| set the default size of the overlay before stretch gets applied | |
| void | set_visibility (bool visible) |
| set the visibility of the overlay | |
| void | toggle_visibility () |
| toggle the visibility of the overlay | |
| bool | ensure_viewport (cgv::render::context &ctx) |
| Check whether the viewport size has changed since the last call to this method. | |
| bool | ensure_layout (cgv::render::context &ctx) |
| bool | begin_overlay_gui () |
| begins a tree node if create default tree node is set in the gui options; automatically creates the layout gui | |
| void | end_overlay_gui () |
| ends the tree node of the overlay gui | |
| void | create_layout_gui () |
| provides a default gui implementation for private overlay layout members | |
| void | create_gui () |
| Creates a tree node containing the overlay layout options and the gui as specified by the derived overlay class. | |
| Public Member Functions inherited from cgv::base::node | |
| node (const std::string &name="") | |
| construct from name | |
| node_ptr | get_parent () const |
| return the parent node | |
| base_ptr | get_root () const |
| return the root node by traversing parents until no more parent is available | |
| void | set_parent (node_ptr _parent) |
| set a new parent node | |
| node_ptr | get_node () override |
| cast upward to node | |
| const_node_ptr | get_node_const () const override |
| cast upward to const node | |
| std::string | get_type_name () const override |
| overload to return the type name of this object | |
| Public Member Functions inherited from cgv::base::named | |
| named (const std::string &name="") | |
| construct from name | |
| const std::string & | get_name () const |
| return the parent node | |
| void | set_name (const std::string &_name) |
| set a new parent node | |
| named_ptr | get_named () override |
| cast upward to named | |
| const_named_ptr | get_named_const () const override |
| cast upward to const named | |
| Public Member Functions inherited from cgv::base::base | |
| virtual std::string | get_default_options () const |
| overload to provide default options for registration | |
| std::string | get_name_or_type_name () const |
| determine name of instance by checking cgv::base::named interface and in failure fallback to get_type_name() | |
| virtual void | on_register () |
| overload to handle register events that is sent after the instance has been registered | |
| virtual void | unregister () |
| overload to handle unregistration of instances | |
| virtual bool | on_exit_request () |
| overload to handle the appication exit request, return true if exiting is allowed and false otherwise | |
| virtual void | stream_stats (std::ostream &) |
| overload to show the content of this object | |
| virtual data::ref_ptr< group, true > | get_group () |
| perform downcast to group | |
| virtual data::ref_ptr< const group, true > | get_group_const () const |
| perform downcast to const group | |
| template<class T> | |
| data::ref_ptr< T, true > | cast () |
| cast to arbitrary class, but use the casts to named, node and group from the interface | |
| template<class T> | |
| data::ref_ptr< const T, true > | cast_const () const |
| const cast to arbitrary class, but use the casts to named, node and group from the interface | |
| template<class T> | |
| T * | get_interface () |
| use dynamic type cast to check for the given interface | |
| template<class T> | |
| const T * | get_const_interface () const |
| use dynamic type cast to check for the given interface | |
| virtual void | update () |
| this virtual update allows for example to ask a view to update the viewed value. The default implementation is empty. | |
| virtual void * | get_user_data () const |
| this virtual method allows to pass application specific data for internal purposes | |
| virtual std::string | get_property_declarations () |
| return a semicolon separated list of property declarations | |
| virtual bool | set_void (const std::string &property, const std::string &value_type, const void *value_ptr) |
| abstract interface for the setter of a dynamic property. | |
| virtual bool | get_void (const std::string &property, const std::string &value_type, void *value_ptr) |
| abstract interface for the getter of a dynamic property. | |
| virtual bool | call_void (const std::string &method, const std::vector< std::string > ¶m_value_types, const std::vector< const void * > ¶m_value_ptrs, const std::string &result_type="", void *result_value_ptr=0) |
| abstract interface to call an action | |
| void | set (const std::string &property, const char *value) |
| specialization of set method to support const char* as strings | |
| template<typename T> | |
| void | set (const std::string &property, const T &value) |
| set a property of the element to the given value and perform standard conversions if necessary. | |
| template<typename T> | |
| T | get (const std::string &property) |
| query a property of the element and perform standard conversions if necessary. | |
| void | multi_set (const std::string &property_assignments, bool report_error=true) |
| set several properties | |
| bool | is_property (const std::string &property_name, std::string *type_name=0) |
| check if the given name specifies a property. | |
| void * | find_member_ptr (const std::string &property_name, std::string *type_name=0) |
| find a member pointer by name. | |
| Public Member Functions inherited from cgv::data::ref_counted | |
| int | get_ref_count () const |
| read access to current count | |
| Public Member Functions inherited from cgv::render::drawable | |
| drawable () | |
| default construction | |
| void | hide () |
| hide the drawable | |
| void | show () |
| show the drawable | |
| bool | is_visible () const |
| check whether the drawable is visible | |
| context * | get_context () const |
| access the current context. The context will be available latestly in the init method but not in the contructor. | |
| void | set_context (context *_ctx) |
| set the current focus context, this should only be called by the context itself | |
| view * | find_view_as_node (size_t view_idx=0) const |
| convenience function to find the view control in the current hierarchy | |
| bool | get_world_location (int x, int y, const view &V, dvec3 &world_location, double *window_z_ptr=0) const |
| use given view together with depth buffer of context in order to compute the world location of the point at mouse pointer location (x,y) | |
| cgv::ray3 | get_world_ray (int x, int y, view *view_ptr, const cgv::dmat4 &modelview_projection_window_matrix) const |
| compute ray from eye of given view_ptr through pixel at given mouse location (x,y) according to given modelview projection window matrix | |
| void | post_redraw () |
| posts a redraw event to the current context if one is available | |
| void | force_redraw () |
| forces a redraw right now. This cannot be called from init, init_frame, draw, finish_draw, finish_frame and clear | |
| virtual void | resize (unsigned int w, unsigned int h) |
| callback to announce resizing of the output window | |
| virtual void | init_frame (context &) |
| this method is called in one pass over all drawables before the draw method | |
| virtual void | draw (context &) |
| overload to draw the content of this drawable | |
| virtual void | finish_draw (context &) |
| this method is called when the current drawable is left in a tree traversal that calls the draw method | |
| virtual void | destruct (context &) final |
| do not use destruct for a drawable but clear!! | |
| Public Member Functions inherited from cgv::base::traverse_policy | |
| traverse_policy (int _policy=TP_ALL+TP_STOP_ON_SUCCESS, bool _active=true, int _focus=-1) | |
| construct default traverse policy that visits everything | |
| int | get_policy () const |
| return the policy without the stop on success flag | |
| bool | stop_on_success () const |
| return whether to stop on success | |
| bool | stop_on_failure () const |
| return whether to stop on failure | |
| void | set_policy (int _policy) |
| set a new policy, always add stop on success flag if needed | |
| int | get_focused_child () const |
| return the focused child or -1 if none is focused | |
| void | set_focused_child (int _focused_child) |
| set the focused child | |
| bool | get_active () const |
| return whether the current node is active | |
| void | set_active (bool _active) |
| set the active flag of the current node | |
| Public Member Functions inherited from cgv::gui::provider | |
| void | remove_element (cgv::base::base_ptr) |
| remove a single element from the gui | |
| void | remove_all_elements () |
| this method removes all elements from the gui and can be used in a method that rebuilds the complete gui | |
| cgv::base::base_ptr | find_element (const std::string &name) |
| find a gui element by name in the current group, return empty pointer if not found | |
| template<typename T> | |
| data::ref_ptr< view< T > > | find_view (const T &value, int *idx_ptr=0) |
| find a view of a given class member | |
| template<typename T> | |
| data::ref_ptr< control< T > > | find_control (T &value, int *idx_ptr=0) |
| find a control of a given class member | |
| control_ptr | find_control_void (void *value_ptr, int *idx_ptr) |
| access to control of untyped member pointer | |
| view_ptr | find_view_void (void *value_ptr, int *idx_ptr) |
| access to view of untyped member pointer | |
| template<typename T> | |
| void | set_control_property (T &value, const std::string &property_name, const std::string &property_value) |
| Set the property value of all controls of a given class member. | |
| gui_group_ptr | get_parent_group () const |
| use the parent group to append to be managed elements that should be destroyed in a post_recreate_gui event | |
| view_ptr | add_view_void (const std::string &label, const void *value_ptr, const std::string &value_type, const std::string &gui_type, const std::string &options, const std::string &align) |
| add a newly created view to the group | |
| control_ptr | add_control_void (const std::string &label, void *value_ptr, abst_control_provider *acp, const std::string &value_type, const std::string &gui_type, const std::string &options, const std::string &align, void *user_data) |
| add a newly created control to the group | |
| provider () | |
| default construction | |
| ~provider () | |
| ensure to remove posted recreation callbacks | |
| virtual std::string | get_gui_name () const |
| Derive a name for this instance that can be used in the gui as heading. | |
| virtual std::string | get_parent_type () const |
| Returns the group type that should be used by the class embedding the gui of the provider. | |
| virtual bool | ensure_selected_in_tab_group_parent () |
| ensure that my UI is selected in the parent group in case this is a tab group, otherwise return false | |
| virtual void | update_member (void *member_ptr) |
| call this to update all views and controls of a member | |
| virtual void | update_all_members () |
| call this to update all views and controls of all member | |
| virtual std::string | get_menu_path () const |
| return a path in the main menu to select the gui | |
| virtual shortcut | get_shortcut () const |
| return a shortcut to activate the gui without menu navigation | |
| virtual void | recreate_gui () |
| Recreate the gui of this instance right now. | |
| virtual void | post_recreate_gui () |
| delayed recreation of gui | |
| void | align (const std::string &_align) |
| send pure alignment information | |
| std::string | concat_enum_def (const std::vector< std::string > &names, const std::string &additional_first_name="", const std::string &additional_last_name="") |
| add a new group to the given parent group, not supported yet | |
| gui_group_ptr | add_object_gui (cgv::base::base_ptr object, const std::string &label, const std::string &group_type, const std::string &options, const std::string &align) |
| void | integrate_object_gui (cgv::base::base_ptr object) |
| call this in create_gui() function to integrate gui of another provider object by setting the parent group and parent provider of the other object | |
| void | inline_object_gui (cgv::base::base_ptr object) |
| integrate (if not explicitly done before) and inline the gui of another object that must be derived from provider | |
| gui_group_ptr | add_group (const std::string &label, const std::string &group_type, const std::string &options="", const std::string &align="\n") |
| add a newly created subgroup to the group | |
| cgv::base::base_ptr | add_decorator (const std::string &label, const std::string &decorator_type, const std::string &options="", const std::string &align="\n") |
| add a newly created decorator to the group | |
| button_ptr | add_button (const std::string &label, const std::string &options="", const std::string &align="\n") |
| use the current gui driver to append a new button with the given label | |
| template<typename T> | |
| data::ref_ptr< view< T > > | add_view (const std::string &label, const T &value, const std::string &gui_type="", const std::string &options="", const std::string &align="\n") |
| use this to add a new view to the gui with a given value type, gui type and init options | |
| template<typename T> | |
| data::ref_ptr< control< T > > | add_control (const std::string &label, T &value, const std::string &gui_type="", const std::string &options="", const std::string &align="\n") |
| use this to add a new control to the gui with a given value type, gui type and init options | |
| template<typename T> | |
| data::ref_ptr< control< T > > | add_control (const std::string &label, control_provider< T > *provider, const std::string &gui_type="", const std::string &options="", const std::string &align="\n", void *user_data=0) |
| use this to add a new control to the gui, where the control is implemented with a control provider class | |
| template<typename T> | |
| data::ref_ptr< control< T > > | add_member_control (cgv::base::base *base_ptr, const std::string &label, T &value, const std::string &gui_type="", const std::string &options="", const std::string &align="\n") |
| add control with callback to cgv::base::on_set method on cgv::gui::control::value_change | |
| bool | add_tree_node (const std::string &label, bool &toggle, int level, const std::string &a="\n", gui_group_ptr ggp=gui_group_ptr()) |
| add a collapsable node to the gui (deprecated) | |
| template<typename T> | |
| bool | begin_tree_node (const std::string &label, const T &value, bool initial_visibility=false, const std::string &options="", gui_group_ptr ggp=gui_group_ptr()) |
| Begin a sub tree of a tree structured gui. | |
| template<typename T> | |
| void | end_tree_node (const T &value) |
| template specialization that allows to specify value reference plus node_instance by using the result of the function with_instance(value,idx) for the value argument finish a sub tree begun with begin_tree_node | |
| template<typename T> | |
| bool | is_tree_node_visible (const T &value) const |
| return whether the sub tree attached to a value is visible | |
| template<typename T> | |
| void | set_tree_node_visibility (const T &value, bool is_visible) |
| set the visibility status of sub tree attached to a value. This calls the post_recreate method if needed. | |
| bool | begin_tree_node_void (const std::string &label, const void *value_ptr, int index=-1, bool initial_visibility=false, const std::string &options="", gui_group_ptr ggp=gui_group_ptr()) |
| void version of the templated functions | |
| void | end_tree_node_void (const void *value_ptr, int index=-1) |
| bool | is_tree_node_visible_void (const void *value_ptr, int index) const |
| void | set_tree_node_visibility_void (const void *value_ptr, int index, bool is_visible) |
| template<typename T> | |
| bool | add_gui (const std::string &label, T &value, const std::string &gui_type="", const std::string &options="") |
| Add a composed gui of the given gui_type for the given value. | |
| Public Member Functions inherited from cgv::gui::event_handler | |
| event_handler () | |
| default construction | |
| bool | grab_focus () |
| grab the focus in all parent nodes | |
| bool | add_key_control (const std::string &property, const std::string &options, cgv::base::group_ptr group=cgv::base::group_ptr()) |
| add a key control for the given property with the given options. | |
Protected Member Functions | |
| void | begin_content (cgv::render::context &ctx, bool clear_frame_buffer=true) |
| virtual void | init_styles () override |
| void | init_container_style (const cgv::gui::theme_info &theme) |
| cgv::g2d::irect | get_content_rectangle () const |
| return the current rectangle area of the themed_overlay content | |
| int | padding () const |
| Protected Member Functions inherited from cgv::overlay::canvas_overlay | |
| bool | ensure_layout (cgv::render::context &ctx) |
| void | post_recreate_layout () |
| void | clear_damage () |
| bool | is_damaged () const |
| void | begin_content (cgv::render::context &ctx, bool clear_frame_buffer=true) |
| void | end_content (cgv::render::context &ctx, bool keep_damage=false) |
| virtual void | draw_impl (cgv::render::context &ctx) |
| void | register_shader (const std::string &name, const std::string &filename) |
| Protected Member Functions inherited from cgv::overlay::overlay | |
| virtual void | on_visibility_change () |
| called when the overlay visibility is changed through the default gui | |
| virtual void | on_layout_change () |
| called when the overlay layout parameters are changed through the default gui | |
| void | update_layout () |
| update the layout of the overlay container | |
| virtual void | create_gui_impl () |
| virtual method to implement the derived class gui creation | |
| Protected Member Functions inherited from cgv::base::base | |
| virtual | ~base () |
| make destructor virtual and not accessible from outside | |
| Protected Member Functions inherited from cgv::data::ref_counted | |
| ref_counted () | |
| constructor initializes the count to 0 | |
| void | set_ref_count (int c) const |
| write access is also const to allow ref counted pointers to const instances | |
| void | set_parent (gui_group_ptr) |
| the gui window sets the parent group through this method | |
| void | update_parent () |
| update the parent group | |
| virtual void | on_select () |
| called by selection_change_cb whenever the gui of this provider is selected | |
| virtual void | on_deselect () |
| called by selection_change_cb whenever the gui of this provider is deselected | |
| virtual void | selection_change_cb (cgv::base::base_ptr new_child, bool selected) |
| this is called by the gui group when the selection changes | |
Protected Attributes | |
| bool | background_visible_ = true |
| whether the background is visible (true by default) | |
| Protected Attributes inherited from cgv::overlay::canvas_overlay | |
| cgv::g2d::canvas | overlay_canvas |
| cgv::g2d::canvas | content_canvas |
| bool | draw_in_finish_frame = false |
| Protected Attributes inherited from cgv::base::node | |
| node_ptr | parent |
| store a pointer to the parent node | |
| Protected Attributes inherited from cgv::base::named | |
| std::string | name |
| store the name as a string | |
| Protected Attributes inherited from cgv::base::traverse_policy | |
| TraversePolicy | policy |
| bool | active |
| int | focus |
| gui_group_ptr | parent_group |
| driver specific handle for the group gui element managing the gui built in the provider | |
| provider * | parent_provider |
Additional Inherited Members | |
| template<typename T> | |
| static bool & | ref_tree_node_visible_flag (const T &value) |
| return a reference to the boolean flag, that tells whether the tree node for the passed value is visible | |
| static bool & | ref_tree_node_visible_flag_void (const void *value_ptr, int index=-1) |
| Public Attributes inherited from cgv::overlay::overlay | |
| gui_options_t | gui_options |
| options for the GUI creation of this overlay (must be set before GUI creation) | |
| Static Protected Member Functions inherited from cgv::base::base | |
| template<class T> | |
| static data::ref_ptr< T, true > | cast_dynamic (base *b) |
| use dynamic cast for downcast to given class | |
Detailed Description
Definition at line 11 of file themed_canvas_overlay.h.
Constructor & Destructor Documentation
◆ themed_canvas_overlay()
| cgv::overlay::themed_canvas_overlay::themed_canvas_overlay | ( | ) |
creates an overlay in the bottom left corner with zero size using a canvas for 2d drawing
Definition at line 6 of file themed_canvas_overlay.cxx.
References cgv::overlay::canvas_overlay::canvas_overlay(), and cgv::overlay::overlay::set_margin().
Member Function Documentation
◆ begin_content()
|
protected |
Definition at line 17 of file themed_canvas_overlay.cxx.
◆ get_background_visible()
|
inline |
Definition at line 40 of file themed_canvas_overlay.h.
◆ get_content_rectangle()
|
protected |
return the current rectangle area of the themed_overlay content
Definition at line 42 of file themed_canvas_overlay.cxx.
References cgv::overlay::overlay::get_local_rectangle().
◆ handle_theme_change()
|
overridevirtual |
override in your class to handle theme changes
Reimplemented from cgv::gui::theme_observer.
Reimplemented in cgv::overlay::transfer_function_editor.
Definition at line 28 of file themed_canvas_overlay.cxx.
Referenced by cgv::overlay::transfer_function_editor::handle_theme_change().
◆ init()
|
overridevirtual |
this method is called after creation or recreation of the context, return whether all necessary functionality is supported
Reimplemented from cgv::overlay::canvas_overlay.
Reimplemented in cgv::overlay::transfer_function_editor.
Definition at line 12 of file themed_canvas_overlay.cxx.
References cgv::overlay::canvas_overlay::init().
◆ init_container_style()
|
protected |
Definition at line 34 of file themed_canvas_overlay.cxx.
◆ init_styles()
|
inlineoverrideprotectedvirtual |
Reimplemented from cgv::overlay::canvas_overlay.
Definition at line 23 of file themed_canvas_overlay.h.
◆ padding()
|
inlineprotected |
Definition at line 30 of file themed_canvas_overlay.h.
◆ set_background_visible()
| void cgv::overlay::themed_canvas_overlay::set_background_visible | ( | bool | flag | ) |
Definition at line 48 of file themed_canvas_overlay.cxx.
Member Data Documentation
◆ background_visible_
|
protected |
whether the background is visible (true by default)
Definition at line 19 of file themed_canvas_overlay.h.
Referenced by cgv::overlay::color_scale_legend::create_gui_impl(), cgv::overlay::performance_monitor::create_gui_impl(), cgv::overlay::color_scale_legend::handle_member_change(), and cgv::overlay::performance_monitor::handle_member_change().
The documentation for this class was generated from the following files:
- libs/cgv_overlay/themed_canvas_overlay.h
- libs/cgv_overlay/themed_canvas_overlay.cxx
